Product Description

Introduction

The asynchronous form traveler is specifically designed for corrugated steel web bridge segmental casting.

The asynchronous form traveler structure consists of six key components: main trussing system, walking and retreating system, suspension system, guide beam system, protective system, and formwork system.

The Boyoun asynchronous form traveler features hydraulic cylinder thrusting for walking and retreating, enabling quick positioning, adjusting the lower side form through a screw thread to achieve erecting and demolding of the lower side form, and has advantages such as simplicity in structure, stability in quality, and optimization in design.

Working Principle

The corrugated steel web is used as the form traveler, the joist is connected to the upper beam to pour the bottom form, and the guide beam is connected to the rear upper beam and the top surface of poured concrete to pour the top form, so that the bottom plate and the top plate are poured separately.

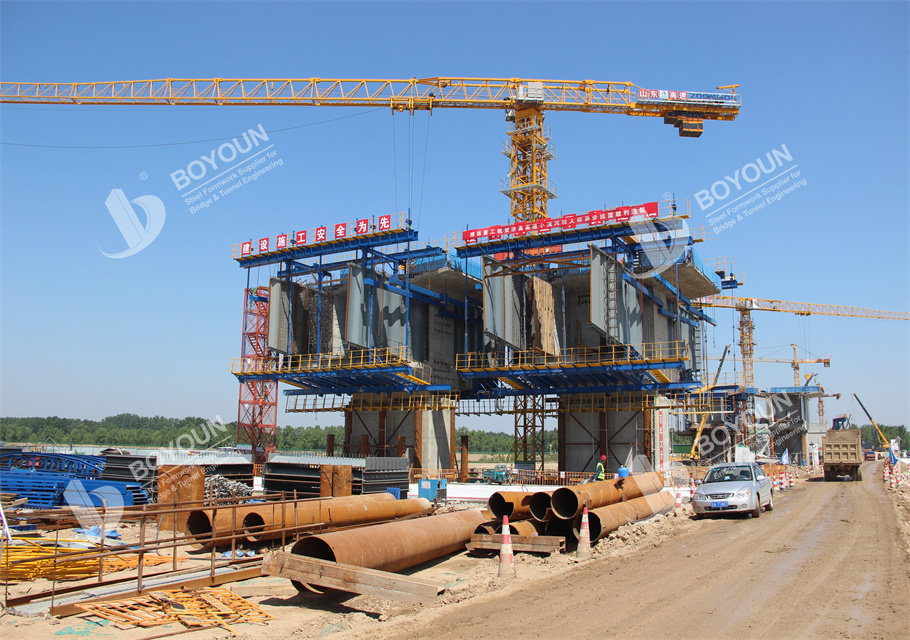

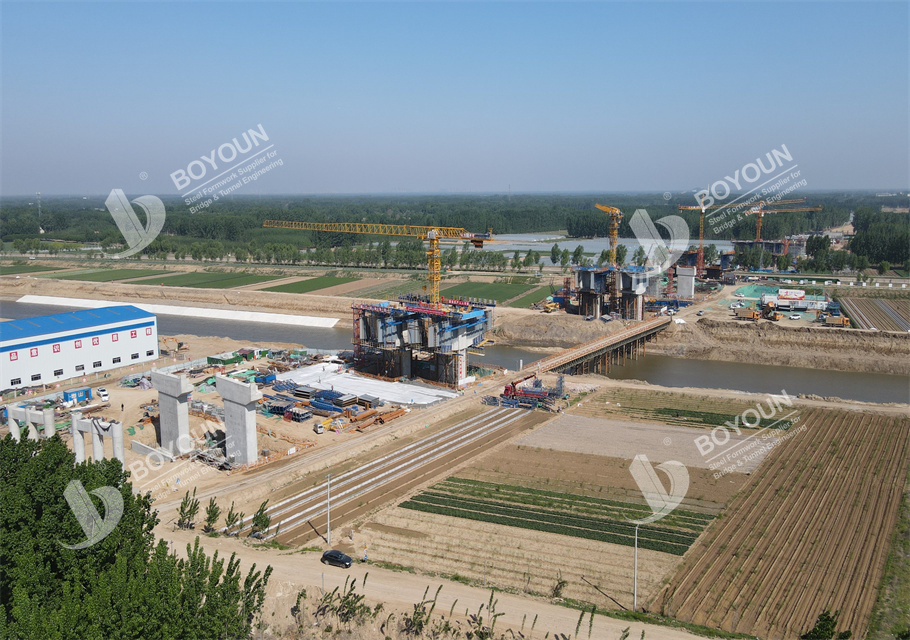

Applications

For more case information ↑

Advantages

1. The main truss has a portal structure that is simpler and more reliable. There are screw rods between the legs and the upper longitudinal beam, which greatly enhance the anti-twisting ability, strength, and stiffness of the asynchronous form traveler.

2. The walking adopts a hydraulic cylinder pushing structure, and the walking track relies on the corrugated steel web itself to have a flat steel plate, which reduces the weight of the form traveler, lowers the height of the form traveler, and improves the overall stability of the asynchronous form traveler.

3. In the formwork system, the upper formwork and upper truss can use the same pier table formwork and truss, reducing the construction labor of the construction workers, reducing the redesign and configuration of the formwork, and thus reducing construction costs.

4. A formwork hoisting structure can be added to the main truss, which can provide multi-directional movement of hoisted objects, solve the problem of inaccurate long-distance hoisting of tower cranes or insufficient arm length, reduce the labor of construction personnel, and improve work efficiency.

Delivery

FAQ

Q1. How does asynchronous form traveler technology reduce costs?

The asymmetric pouring method of asynchronous form traveler can reduce construction steps and time and improve construction efficiency. This reduces labor, machinery and time costs.

Q2. What is the structural stability of the asynchronous form traveler?

During the design process, Boyoun conducted detailed structural analysis and stability tests. Through optimized design, we ensure the stability and safety of the form traveler under various construction conditions.
