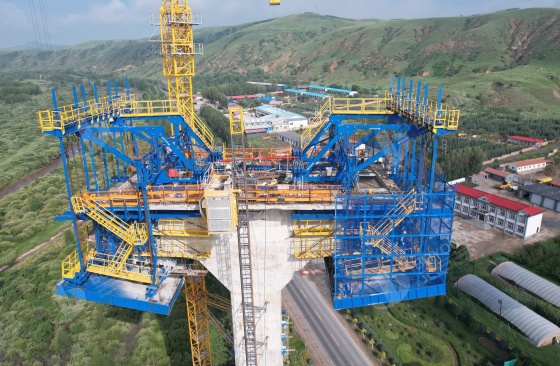

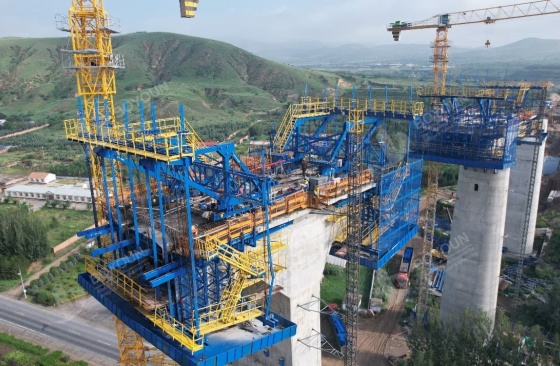

Single Box Single Cell Cantilever Form Traveler

Product Details

Product Description Applications Advantages Delivery FAQ

Product Description

Introduction

Single box single cell cantilever form traveler refers to the main beam of the bridge adopts a single box section to support and pour concrete. It is widely used in the construction of medium-span bridges, especially suitable for the suspension casting construction of continuous beams, T-frames, continuous rigid frames and cable-stayed bridges.

Technical Parameters

Single Box Single Cell Cantilever Form Traveler
Number of Rhombic Frame for One Pair	4 PCS Per Pair
Typical Span of Continuous Beam	32+48+32m; 48+56+48m; 40+64+40m; 48+80+48m; 60+100+60m; 72+120+72m; 72+128+72m.
Typical Length of Pier Table	9m; 12m; 15m; 18m
Heaviest Cantilever Beam Girder in Tonnage	About 90-200T
Cantilever Pouring Length	3-5m
Material	Q235B, Q355B Steel.
Standard Configuration	Main truss, walking system, suspension system, bottom support system, formwork system
Options	Protection system (bottom support protection, full facade protection), hydraulic system, suspension accessories

Applications

Duolun River Bridge

Malaysia Saribas Bridge

Malaysia Pulai River Bridge

For more case information ↑

Advantages

1. Simple structure and standardized design.

2. Main nodes are connected by pins, facilitating easy assembly and disassembly, and saving time and labor resources.

3. Ensure safety through Midas modeling and force calculation.

4. Light weight and can move flexibly and smoothly.

5. High stiffness and small deformation.

6. Standardization rate exceeds 90%, demonstrating high versatility.

Delivery

FAQ

Q1. How to connect large rods?

A: It is simple and convenient to assemble large rods using bolt connections.

Q2. What material is used for the rear anchor of the form traveler?

A: The rear anchorage of the form traveler is made of precision-rolled rebar, which has clear stress and a safe and reliable structure.

Q3. What are the characteristics of the single box single cell cantilever form traveler?

A: The characteristics of the single box single cell cantilever form traveler mainly include: simple structure, clear force, light weight, complete structure, easy operation, safety and reliability, etc. At the same time, it also has high construction efficiency, can shorten the construction period and reduce project costs.
